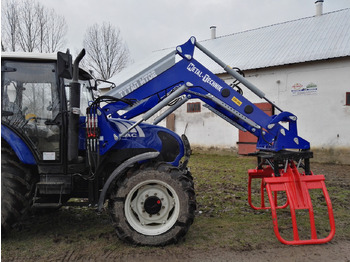

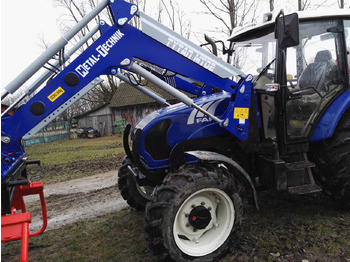

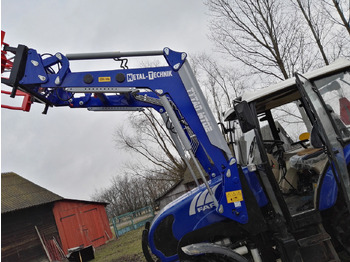

Cargador frontal para tractor nuevo para Maquinaria agrícola Metal-Technik Frontlader LANDINI / Ładowacz czołowy do LANDINI

Technical data

Machine type: mounted

Method of aggregation with the tractor: substructure

Lifting height 3570 mm

Loader weight (boom alone) 562 kg

Estimated lifting capacity 1600 kg

Depth of scooping 230 mm

Drawing angle: 30 degrees

Dumping angle: 62 degrees

Working height adjustment: hydraulic

Leveling error max 3 degrees

Position error for bucket: max 10 degrees

Working pressure up to 190 bar

Tractor power: 60-120 HP

Working speed (max.): 8 km/h

Transport speed (max.): 15 km/h

Operation: 1 person.

Noise level below 70 dB

Basic equipment:

- support structure

- frame ( color of your choice)

- 3-section hydraulics

- joystick

At an extra charge:

- shock absorber

- better distributor

- faster
