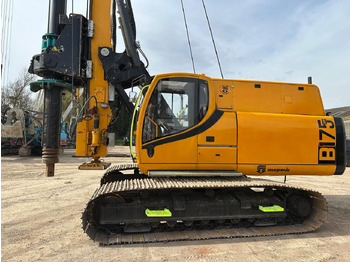

Martillo de hinca de pilotes Casagrande B175 XP

Working Hours : 3,920 appr.

Undercarriage : 2500 – 3700 mm (close — open)

Diesel Engine : Cummins QSB 6.7 194 kW @2200 rpm — Tier 4F

Rotary Head : H18 Max torque 175 kNm with cardan joint

Winches : Main 160 kN, auxiliary 70 kN

Pull-Down Winch : Crowd/Extraction Force 280 kN, Stroke 12.300 mm

Kelly Bars : (dia. 355 mm) with upper guide: 4 x 7,5 interlocking type (kelly box 130×130 mm)

Accessories Included : Automatic greasing system, 3 video cameras (one for space behind the rig, one for the right side, one to control winchesj, Pre- heating operator’s seat Note

This rig is equipped for Rotary drilling -CFA-FDP

Arrangement for rapid CFA-R version complete with:* Special adapter for drive sleeve

• Wedge for jib
• Female half joint for augers
• 1,3 m Upper mast extension
• 125 mm (5″) Inner diameter sleeve complete with: 125 mm i.d. swivel for concrete
• Swan neck for concrete pipe
• Short drive sleeve for CPA complete with reaction bar and inner reduction,
• 6 m long drive sleeve for CFA complete with reaction bar and inner reduction

Lower centring guide, standard type, for CFA-R arrangement

Min dia: 300 mm

Max dia: 900 mm

Interaxle: 800 mm

Complete with specific mast support.

Reduction of lower centering guide for continuous auger Dia : 400 mm High:850 mm

Reduction of lower centering guide for continuous auger

Dia : 600 mm

High: 850 mm

Reduction of lower centring guide for continuous auger

Dia : 800 mm

High:850 mm

Centring guide for FDP arrangement Dia : 280 mm rods

5″ dia. concrete feed pipes – for CFA/FDP arrangement.

Hydraulic circuit for star type auger cleaner Star type auger cleaner.

Rigid wheel for star type auger cleaner

38,000kg Operating weight
