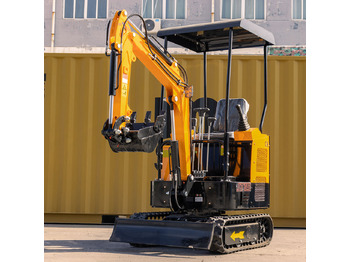

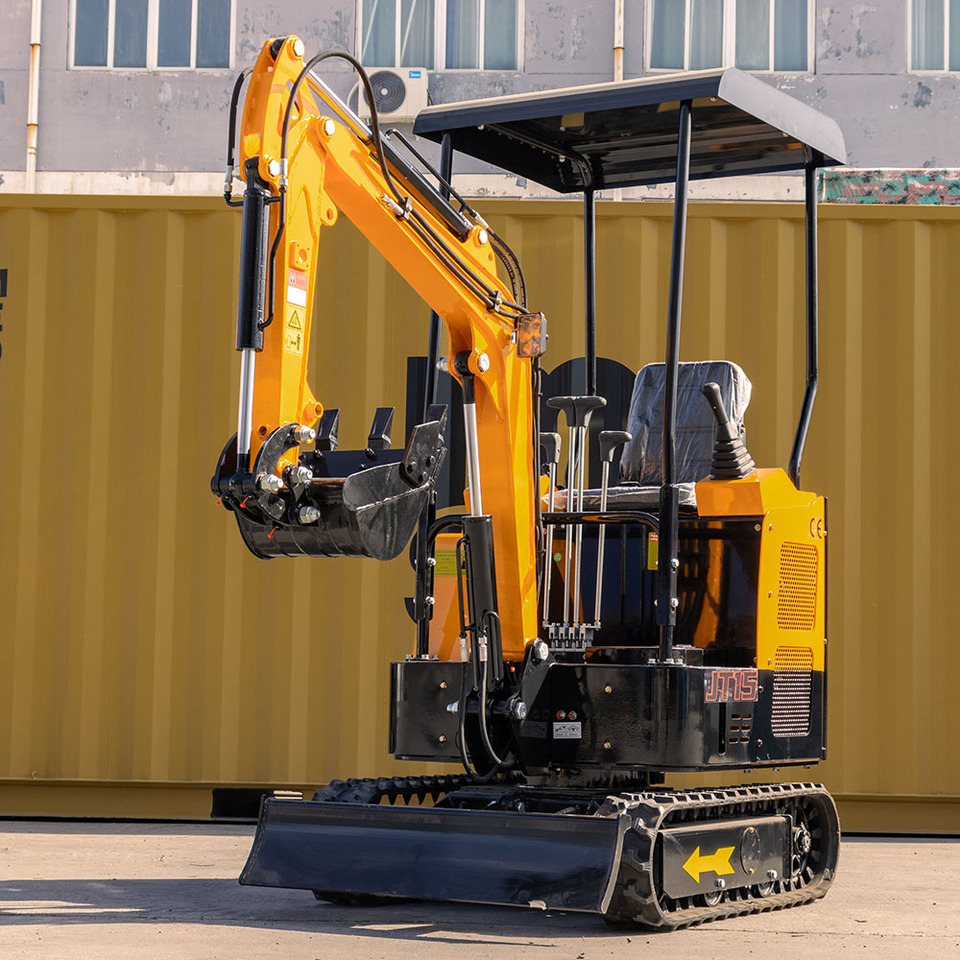

Miniexcavadora JT15 Mini Excavator

JT15 Mini Excavator Instruction

The JT15 adopts a compact design concept, with an operating weight of only 1500kg, and is equipped with an advanced hydraulic system and power unit, allowing it to efficiently perform various types of work in confined spaces. Its core advantage lies in the modular power system and rich optional configurations, which allow users to customize exclusive solutions according to specific working conditions. Whether it is the delicate operation of urban pipeline laying or the high-intensity operation of rural land preparation, JT15 can win the trust with its excellent performance.

JT15 Mini Excavator Parameters

Basic Parameters

Operating weight: 1500kg

Model: Crawler Model

Track Configuration: Standard Track / Telescopic Track (optional)

Minimum turning radius: 1.8m (standard)

Power System (Multiple Options)

Power Type Model / Specification Power Characteristics

Diesel Engine KOOP 7.2KW Economical and energy-saving, suitable for routine operations.

Diesel engine Kubota D482 8.3KW International brand, stable and reliable.

Diesel Engine Kubota D722 10.2KW High torque output, suitable for heavy duty work conditions.

Diesel Engine KOOP 14KW Strong power to cope with complex terrain.

Diesel Engine Laidong 18KW Domestic high-performance, outstanding cost performance

Gasoline engine Briggs&Stratton 13.5HP/23HP Easy to start, suitable for low-noise environments

Lithium Battery Customized lithium battery system - zero emission, suitable for indoor and environmental protection projects.

Functional Configurations

BOOM SWING Function

Swing Angle: ±45

Multi-functional accessory system

200mm: Suitable for precision digging and trenching work.

Crushing: Hydraulic Breaking Hammer

Applicable scenes: concrete demolition, rock crushing

Maximum drilling diameter: 300mm

Grabbing category: mechanical grabber

Opening width: 600mm

Leveling: Grading rake

Width: 1.2m

Function: Land leveling, debris collection

Loosening: Ripper

Number of tines: Single/three tines available

Optional enclosed cab

Fully enclosed design with heating and air conditioning

Complies with ROPS/FOPS safety standards

Noise-reducing treatment, the operating environment noise is less than 75dB.

Performance Features

Flexible and maneuverable

Standard telescopic tracks can be adjusted from 1.2-1.5m in width.

Minimum ground clearance of 280mm for excellent maneuverability.

360° rotary design, no dead angle for operation

Intelligent control

Advanced hydraulic system, precise and smooth operation

Optional electronic monitoring system, real-time control of equipment status.

Automatic engine idling function reduces fuel consumption.

Convenient maintenance

Large opening design of engine compartment makes daily maintenance easy.

Modularized layout of key components, fast and efficient maintenance and replacement.

Hydraulic oil replacement cycle extended to 500 hours

Application Scenarios

Municipal engineering: pipe laying, cable trench excavation, road repair

Garden construction: tree transplanting, landscape renovation, trench digging

Agricultural field: land preparation, greenhouse foundation construction, orchard construction

Indoor construction: plant demolition, basement excavation, warehouse remodeling
