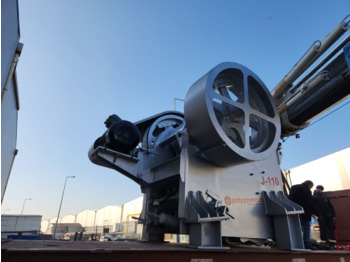

Trituradora de mandíbula nuevo Polygonmach PJC140 1400x1100mm jaw crusher

1 FEEDING HOPPER & GRIZZLY FEEDER -PPG

• Dimensions : 1000x4000 mm

• Hoppers Volume : 55 m3

• Feeding Capacity :450-550 tons/h

• Grill Dimension : 1500 mm

• Main Body Thickness : 20 mm

• Body liners : HARDOX 450 – 10 mm

• Weight : 22.5 tonnes

• Vibromotors : 2 x11 kW – KEMP-MEGATECH Brand, Origin: ITALY

• Walking platforms are included.

• 100rpm Vibrating Speed

• Bolted Type Extension Covers

2 JAW CRUSHER-PJC-13

• Feeding size : 1400 x 1100 mm.

• Capacity : 500-750 tph

• Power : Heavy duty AC motor, 220 Kw.1450 rpm

• Jaws & abrasion parts : Special treated abrasion steel

• Abrasion steel treatment : Austenitic

• Abrasion – austenitic steel content : %16-18 Mn + % 2,2 Cr

• Abrasion – austenitic steel hardness : > 450 HB

• Pitman : GS 45 casting steel

• Rotating (eccentric) mile/shaft : Cr - Ni - Mo forging steel

• Bearings : Heavy duty,

• Jaw adjustment mechanism : Hydraulic

• Coating : Double lay epoxy coated after sand blasting and lining
