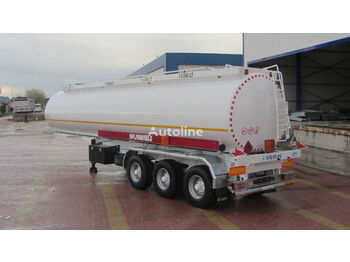

Semirremolque cisterna nuevo para transporte de combustible Serin 2023

Fifth Wheel Height —1300mm. Suitable for 6x4 truck

Body —Cylindrical

King Pin —2”king – pin detachable from below made by

SAE standards 8 bolt type.

Volume —Total Net Volume: 42.000 lt

—Six Compartment

Axles —3 x 12000 kg carrying capacity Serin Drum Axle brand

Distance between Axles —1320 mm

Brake and Suspension System —Air Suspension

—Drum Brake System

—ABS WABCO Brake System

—Pneumatically drainage safety valve

Landing Gears —Double Speed,

—24000 kg carrying capacity,

—JOST brand mechanical Landing Gears,

Rear Bumper —Suitable 70/221 / AT-version of the rear bumper,

The rear overhang —Distance from the end of the tank on the bumper should be more then 300mm

Wheel Chock —Carriers with 1 unit wheel chock

Tires & Wheels —6 +1 PCS 385 / 65 R 22,5

—Goodyear-Pirelli

Loading, unloading System —Suitable for loading from top,

—On the left side of tanks to be one 4”API cabling Sening Or Niehuser with the cap it will be

discharge manufault valve and Diameter of 4” inches (in

locked Box)

—Six pcs. 500mm manhole cover to be suitable for loading from top

Overfill Pool — It is design for prevention of spilling fuel all over the tank body and overfill fuel is disposed by two drain hoses mounted on the rear side of the tanker body.

Walking Platform(Cat walk)

—The rough surface on the side with all the length of the pool within walking paths,

—The ladder should be located on the front

Mudguard —1 pcs galvanized steel mudguards with plastic edges.

Spare Tire Carrier —Two spare tire basket

Box —1 unit Tool Box,

—1 unit Insulated Food Box,

—1 unit Discharging Box (Left side of the Tanker),

—2 units each of 6 kg of fire tube with holder

Hoses —3” hoses with carrier

Water Tank —60 lit water tank which is made of stainless steel.

Paint —Steel Material surface are cleaned by grit metal and send how shot is blasted on the surfaces Of the metal.

—2 Floor Epoxy primers are made and paint will be choose on demand of the customer,

Electrical Equipment and Lighting —There are amber-colored lights in the side by 3 units,

—Park at the rear lamps,

—Reflector triangles,

—Electrical system; Flame proof electrical system

—2 X 7-pin electrical socket.

—Stop lights with protective grill

Accessories —Hub key,

—Axles Bolt Nut key,

—Tool box keys,
