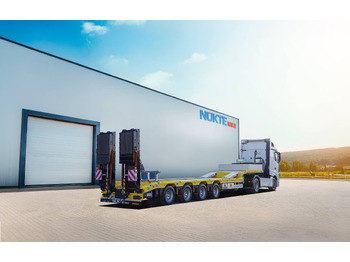

Semirremolque góndola rebajadas nuevo Nükte Trailer 3 Axle Extendable Lowbed Semi-Trailer

3 AXLE EXTENDABLE LOWBED SEMI-TRAILER

SHEET AND WELDING APPLICATION

• High-strength steel S355 or STRENX MC700 (MY INNER STRENX CERTIFIED)

• Synergic welding application.

DIMENSION RANGES

• Width from 2550 mm up to 4000 mm, depending on customer demand.

• Platform length from 5000 mm up to 12,000 mm.

• Total length from 10,700 mm up to 16,000 mm.

SIDE EXTENSION FEATURES

• Option to expand up to 250 mm on both right and left sides.

TRAILER GROUND CLEARANCE

• Height from 775 mm up to 1100 mm, depending on customer demand.

KING-PIN

• 2’’ or 3.5’’ King-Pin approved by ECE-R55 regulations.

• May vary for 4x2-6x2 or 6x4 tractor units.

AXLE AND TIRE FEATURES

• Tires suitable for 17.5 - 19.5 or 22.5-inch rims.

• Axles: Drums with 12 - 18 ton capacity.

• Lifting System: Automatic load-sensitive front axle lift available.

• Steerable Axle Options: A steer axle can be added upon customer request.

SUSPENSION FEATURES

• Mechanical or air suspension, depending on customer preference.

RAMP LEG OPTIONS

• Hydraulic sideways or a one-piece ramp with up to 9° loading angle.

• 24 V DC Power Pack (Hydro Motor). Special hydraulic cylinders with safety locks depending on options.

• The top of the ramp can be covered with wood or grid sheet.

BRAKE SYSTEM

• Brake system approved by ECE-R13 regulations.

ELECTRICAL SYSTEM

• 2x7 Pin socket according to ISO standards.

• 15 Pin ADR-compliant socket according to ISO standards.

• 7-function tail lamps (horn type).

• 2 white LED outline marker lights.

• Amber side marker lamps along the platform.

• Additional lighting for road and work conditions.

PAINTING APPLICATIONS

• Shot blasting at SA2.5 level per ISO standards prior to painting.

• Chemical cleaning after shot blasting.

• Zinc-rich or metallization application upon request.

• Painted in a baking booth with epoxy primer and acrylic paint.

ACCESSORIES

• 3 Storage lockers on the gooseneck,

• 2 Toolbox sets,

• Wheel chock,

• Front and rear rotating lamp,

• Work light,

• Galvanized tie-down rings,

• Galvanized expansion arms,

• Galvanized spare wheel bracket,

• Galvanized wide reflectors for side extension,

• 2 galvanized fire cabinet brackets.

1. TECHNICAL SPECIFICATIONS

Our Lowbed trailers are manufactured with high-strength steel, a robust chassis, and powerful suspension systems.

Body and Chassis Design

• A high-strength steel chassis that boosts durability against heavy loads,

• Monoblock or modular chassis options to meet operational needs,

• Reinforced floor plates and crossbeams for long service life,

• Hydraulic or manual ramp systems for easy loading/unloading.

Load Capacity

• Various configurations from 3 axles to 10 axles,

• Load-carrying capacity from 30 tons to 120 tons, special designs for specific projects,

• Expandable platform options for large-volume loads.

Axle and Suspension Systems

• Special low chassis design minimizing loading height for stable transport,

• Air or hydraulic suspension options enhancing comfort,

• Steerable axle systems providing maximum maneuverability in tight corners and challenging terrains.

Brake and Safety Systems

• WABCO or Knorr-Bremse EBS brake system ensuring short braking distance and safety,

• ABS and automatic brake balancing for stability under heavy loads,

• Reinforced tie-down points for secure load fastening.

Tires and Rims

• Tire sizes 385/65 R22.5 or 245/70 R17.5,

• Steel or aluminum rims offering lightweight and durability.
