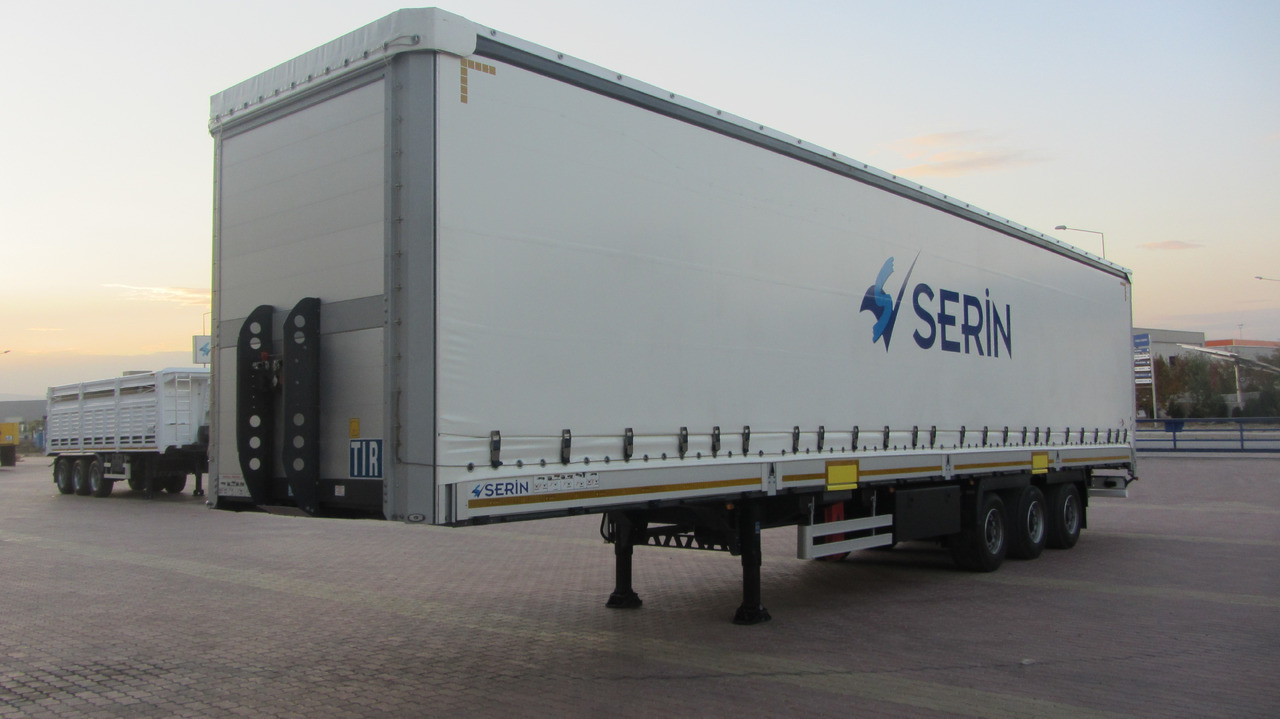

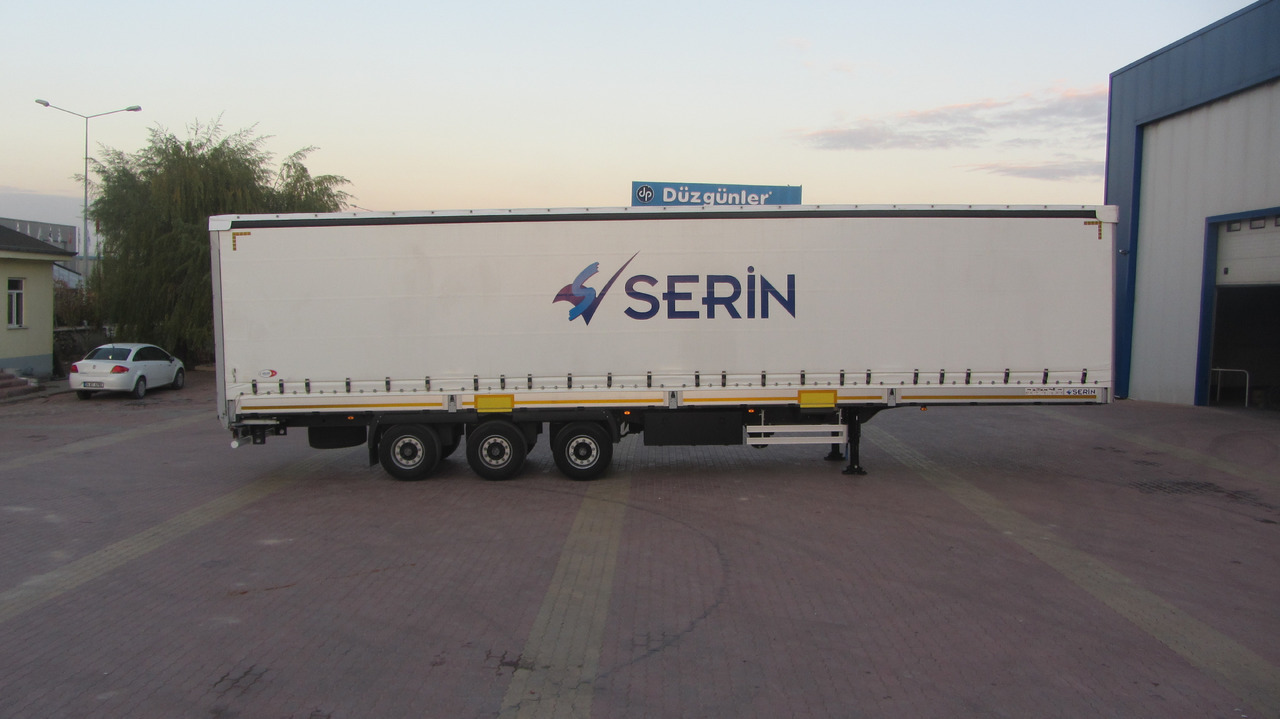

Semirremolque lona nuevo Serin 2023

Inner Length: —12300 mm

Inner Width: —2480 mm

Inner Height: —2700 mm

Fifth Wheel Height —1400 mm

Volume: —75.4m3

Empty Weight:

Total Weight: —8000 Kg

—40000 Kg

Chassis: —ST 52 Material “I” profile it is produced with gas welding, it has high quality and chassis is suitable for 40000 kg loading capacity. Chassis Color will our standard Black.

King Pin: —SAE standards 3 ½” diameter how is assembled with 8 PCS bolts and is produced from forged 42 Cr Mo4.

Axles: —3 x 12 Serin Brand Axles with closed bearing system.

—Front lifting axle will be automatically lifted after the over loading of the trailer.

Distance between axles: —1380 mm

Brake and Suspension System —Mechanical Suspension

—SACSH brand Shock absorber

—Drum Brake System

—WABCO EBS Brake System

—Automatic Slack Adjuster

—11 level spring life suspension

—Emergency Parking Brake System

—Pneumatically drainage safety valve

Side Walls Dimensions —4 covers 650mm Aluminum side doors,

—Steel pillar

—Sliding curtain sides

Rear Wall: —Rear Door Container wall,

—Aluminum hidden locking system,

—Front Wall, Rear Door, Side Doors will be painted with red color.

Canvas: —1000 g/m2 Sio-Line Brand Coated Panama Canvas.

—Digital printing canvas: (Like Azania –BAKHRESA –JAMBO LOGO)

Roof Profiles: —Special reinforced steel Profiles and roof will be reinforced with the two tensions chains.

Floor Covering: —4 mm thickness chequered plate ,

Landing Gears: —JOST Brand, Having 24 000 Kg Carrying Capacity Two Speed Level Landing Gears.

Tires and Rims: —6 + 1 PCS of 385/65 R 22,5 Tubeless Tires

—Goodyear, Bridgestone or Pirelli 11,75 – 22,5 Plot Rims

Spare Tire Carrier: —Two Spare Tire basket

Boxes: —One PCS plastic tool box,

— One PCS of plastic box for fire extinguisher

— One PCS fire extinguisher

Rings, Chains, Hooks

—4 pieces of public ferries.

—2 x 8 piece side cover installed inside the base mount ring.

Mudguard —4 Pcs plastic type quarter mudguards with plastic edges. —Removable arm mudguards,

—8 connections mudguards,

—Aluminum Hook for pooling the curtain,

Ladder —2.5 m high ladder portable mounted inside the back cover.

Water Tank: —60 liters of Cr-Ni Water Tank Produced with Stainless Steel

Paint: —Material cleaned and grit (metal) material is sand blasted blasting, —2 Floor Epoxy primers are made and the desired color,

—In the final layer is painted with 2 coats acrylic paint,

Electrical Accessories And Lighting —White Colored Corner Lights at Front Left and Front Right. —Five PCS of Amber Colored Lambs at Sides.

—Park Lambs, License Plate Lamb and Triangular Reflector at Rear. —Electrical System is E Approved. 2 x 7 Electrical Sockets.

Accessories —Hub key,

—Axles Bolt Nut key,

—Tool box keys,

Laser Graphics —Digital laser printing will be made according to company logo,

Reflector —Rear Door, will be covered with reflecting stripe

Rear Bumper —Suitable for RO- RO transporting
